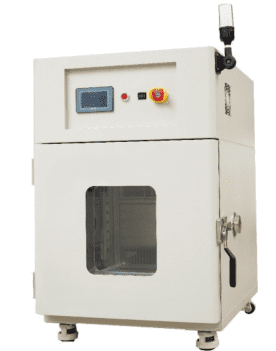

Function: Programmable laboratory and industrial drying oven with PLC touch-screen control for curing, drying, ageing and heat treatment up to 300 C.
Site requirements: 60 cm clearance each side and 100 cm at the rear, flat ventilated floor, AC380V three-phase four-wire plus protective earth, dedicated breaker.
Features:
- Integrated design with single front door and observation window with lighting
- SUS304 stainless steel inner chamber, full welded, double silicone door seal
- High-power centrifugal fans force air circulation for good temperature uniformity
- Electric heater controlled by contactless solid-state relay, evenly distributed in the rear air duct
- PLC touch-screen control in Chinese and English
- Omron over-temperature protector, Schneider air switch and contactors, PT100 sensor
- Four wheels, two cable ports each side, adjustable air vent
- Oven-specific high-temperature long-shaft motor 380 V 0.75 kW
- Ventilation fan for air exchange cooling
Application: Electronics curing and ageing, component drying, laboratory heat treatment, quality testing.
Specification:
| Model | LJ101-1ES |
|---|---|
| Volume (L) | 80 |
| Interior W x D x H (mm) | 450 x 450 x 400 |
| Exterior W x D x H (mm) | about 730 x 950 x 1030 |
| Temperature range | RT+10 C to 300 C |
| Temperature evenness | within +/-3 C |
| Temperature fluctuation | within +/-0.5 C |
| Temperature deviation | within +/-2 C |
| Heating rate | up to 5 C/min |
| Installed power (kW) | 4 |
| Power supply | AC380V three-phase, 50 Hz |
| Control | PLC touch-screen |
| Inner chamber | SUS304 stainless steel, 1.0 mm |
| Shell | cold-rolled steel, 1.2 mm, painted |
