KineScope Hand Held Video Microscope

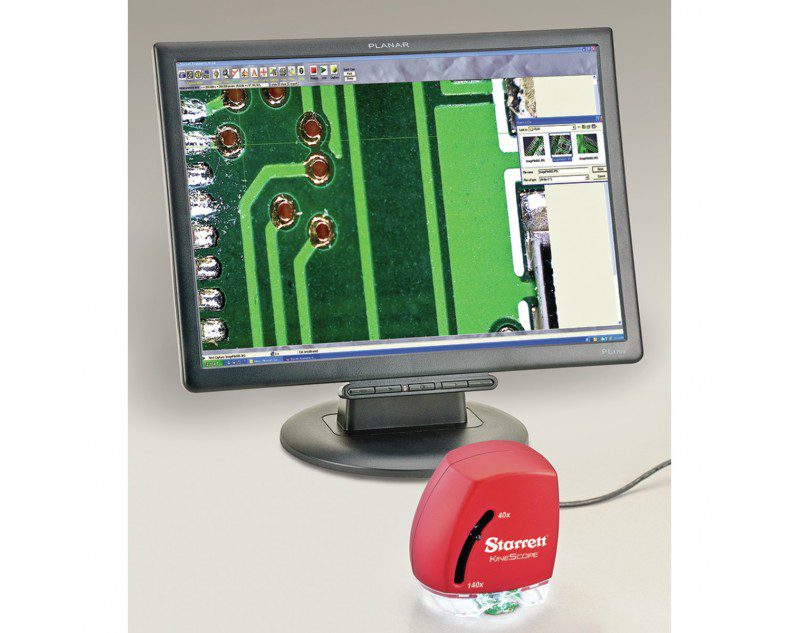

The KineScope microscope combines a digital video camera, precision optics and LED lighting in the palm of your hand. 40 to 140X magnification lets you zoom in on the fine details of large or small parts. Connect the KineScope directly to your computer’s USB port and place it over an object to view the image on your computer screen. Using the included VLink imaging and measuring software, capture images and video, easily add labels, make measurements and draw on the live or captured images, then archive, share or print your finished image. The KineScope is great for medical manufacturing, machine shop, electronic parts or virtually anything you need to inspect or measure.

Inquire Now
Category: Tags: ,

KineScope Hand Held Video Microscope

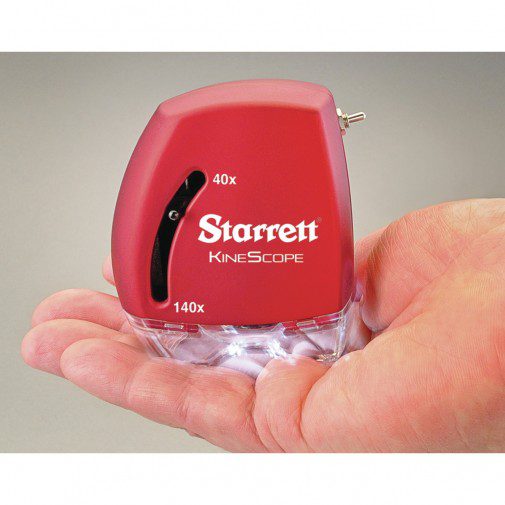

  •  Compact lightweight design is completely portable with your laptop computer
  •  View live and captured images on a computer screen or monitor
  •  Save still images, movies and time lapse
  •  Apply labels, markers, time stamps and measurements
  •  Draw directly on the live image
  •  Includes VLink imaging software
  •  40-140X magnification
  •  Optics: Variable Magnification
  •  CCD Sensor / Resolution: 1/4″ CMOS / 2 Mpixel
  •  Camera Interface: USB
  •  Computer: Required, not provided
  •  Software: VLink
  •  Video Screen: Required, not provided
  •  Screen Resolution: Required, not provided
  •  Lens Magnification: 40x to 140x
  •  Screen Magnification: Monitor Dependent
  •  Field of View (X-Axis): 2.5 to 10mm
  •  Metrology Means: VLink Software
  •  Measurement Resolution: 4 µm (at High Mag)
  •  Measurement Accuracy: Up to +/-10µm (at High Mag)
  •  Basic Stand: Optional
  •  Boom Stand: Optional
  •  LED Ring Light: Standard
  •  Lighting Control: Toggle Switch
  •  Video Inspection: Yes
  •  Basic Dimensions: Yes
  •  Geometric Constructs: No
  •  Image Annotation: Yes
  •  Image Archiving: Yes
  •  Video Edge Detection: No
