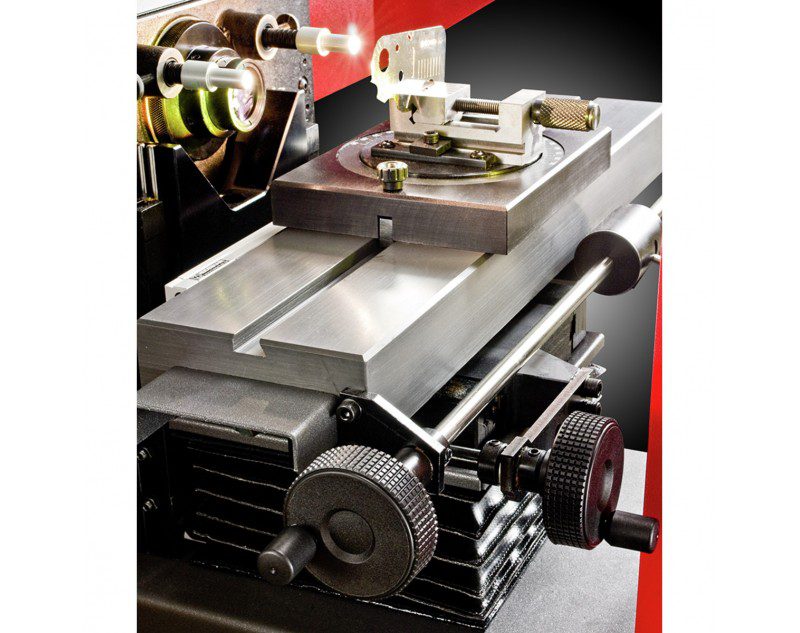

HE400 Horizontal Benchtop Optical Comparator - Image 2

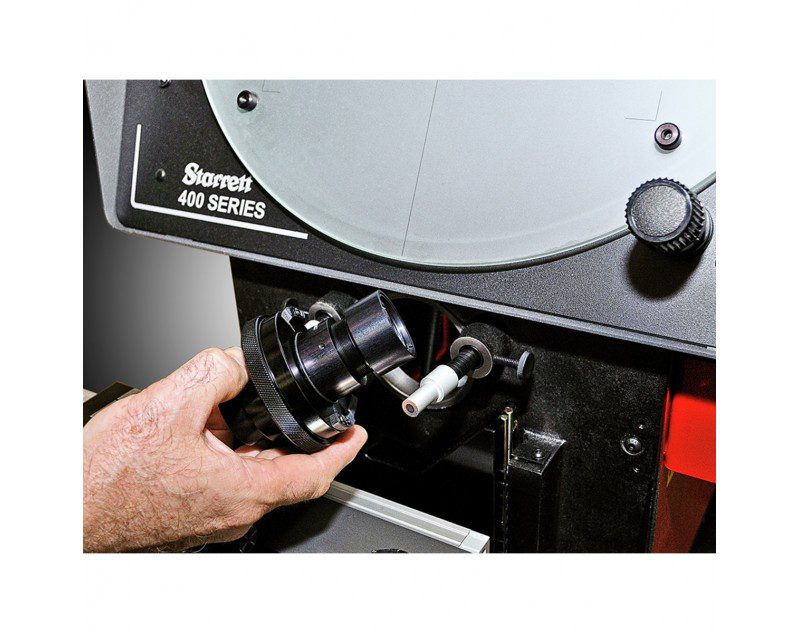

HE400 Horizontal Benchtop Optical Comparator - Image 3

HE400 Horizontal Benchtop Optical Comparator

The HE400 horizontal benchtop optical comparator offers a 16″ screen, 10″ fast traverse X-axis travel, 4” Y-axis travel, quick change bayonet fitting lenses, Q-axis digital protractor with angular measurements to 1′ resolution and your choice of powerful Quadra-Chek or MetLogix software control systems. A time tested, cost effective, solution for non-contact measurement. They are simple to use, yet have great capacity and performance to satisfy an exceptionally wide range of dimensional inspection applications and complex measuring requirements. At the heart of these systems are precision optics, superb lighting and a highly accurate workstage which combine to ensure bright, sharp images and exceptional accuracy. Horizontal models work well with parts that need to be fixtured, held in a vice, or on centers.

Inquire Now
Category: Tags: ,

HE400 Horizontal Benchtop Optical Comparator

  •  System Type: Bench Top
  •  Part View Orientation: Horizontal
  •  Screen Diameter (in): 16″
  •  Screen Diameter (mm): 400
  •  X – Y Measuring Range (in): 10″ x 4″
  •  X – Y Measuring Range (mm): 250 x 100
  •  Linear Glass Scale Encoder on X & Y Axis: Standard
  •  Focus Range (in): 1.125″
  •  Focus Range (mm): 30
  •  Work Stage (in): 18.75″ x 4.75″
  •  Work Stage (mm): 475 x 120
  •  Load Capacity with Negligible Deflection (lbs): 15
  •  Load Capacity Maximum (lbs): 55
  •  Angular Measurement Resolution: 1 Minute
  •  Profile Illumination: Standard
  •  Surface Illumination: Standard
  •  Quick Change Lens Mount (Lenses Not Included): Single
  •  Collimating Condenser with Yellow/Green Filter: Standard
  •  Control System / Software: QC100/200, M2
  •  Display (Control System Dependent): QC DRO or 15.6″ Touchscreen PC
  •  Optical Edge Detection: Optional
  •  Lenses (One Required, Not Included): 10X, 20X, 25X, 31.25X, 50X, 100X
  •  Iris Diaphragm: Optional
  •  Precision Rotary Vise: Optional
  •  Vee Block on Rotary Base: Optional
  •  Precision Fixed Vise: Optional
  •  Precision Centers & Vees: Optional
  •  Glass Plate Work Holder: Optional
  •  Cabinet Stand 32″: Optional
  •  Cabinet Stand 23″: Optional
  •  Canopy and Curtains: Optional
