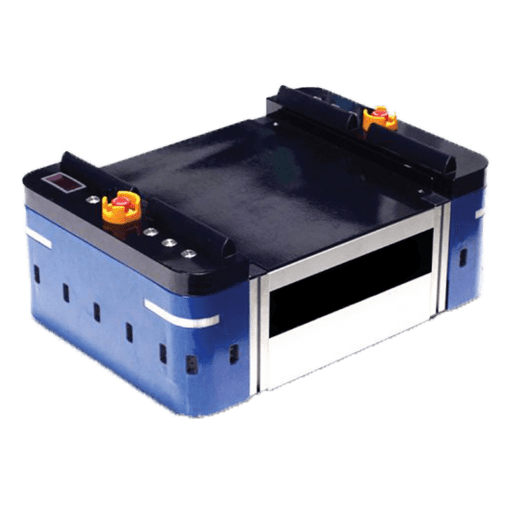

Clark AGV

GENERAL

Dimension (L × W × H) (mm):
650 × 500 × 300 (CL-100)
850 × 650 × 350 (CL-300)

Rated Load (kg):
100 / 300

Navigation:
Dynamic Magnetic*

Driving Direction:
Forward / Reverse / Rotate

Screen:
OPTIONAL

SAFETY PROTECTION

Laser Obstacle Avoidance:
TOF Laser

Sound-Light Alarm:
AVAILABLE

Rear Protection:
OPTIONAL

MOTION PERFORMANCE

Rated Speed (m/min):
0 – 42

Driving Mode:
Differential Drive

Position Accuracy (< mm):
10

BATTERY PERFORMANCE

Endurance (h):
8

Charging Time (h) – Lithium:
3.5

Power Rate (V/Ah) – Lithium:
24 V / 20–40 Ah

Charging Mode:
Manual / Auto

SOFTWARE SUPPORT SYSTEM

Dispatch:
AVAILABLE

Calling:
AVAILABLE

Scheduling:
OPTIONAL

WMS – Integration:
OPTIONAL

Connectivity:
WiFi
