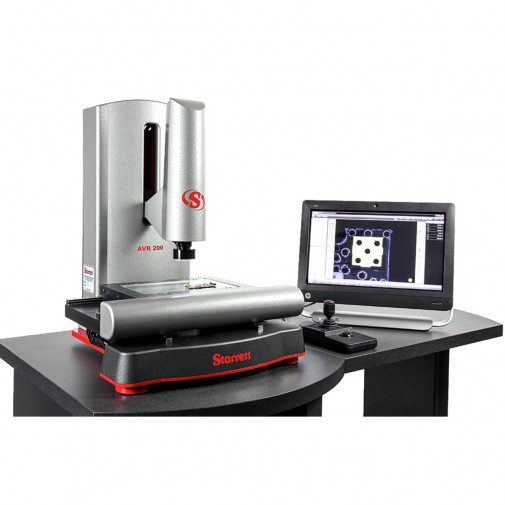

The AVR200 CNC field of view “FOV” vision system offers 8″ x 4″ x 8″ travel, optional Z-axis measuring, a powerful MetLogix software control system, interchangeable telecentric or zoom optics and LED illumination. These systems are rapid video-based FOV CNC measurement systems, which reduce measurement time and are ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities. A precision mechanical bearing X-Y-Z stage and column along with interchangeable telecentric lenses gathers data accurately and repeatably for the MetLogix software. This compact bench top FOV system is simple, quick and powerful!

Inquire Now
Category: Tags: ,

AVR200 FOV CNC Field of View System

  •  System Type: Bench Top
  •  Part View Orientation: Vertical
  •  X-Y-Z Travel (in): 8″ x 4″ x 8″
  •  X-Y-Z Travel (mm): 200 x 100 x 200
  •  Z Axis Measuring: Optional
  •  CNC: Standard
  •  X-Y Accuracy (µm): E2 = 1.9 µm + 5L/1000
  •  Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
  •  Scale Resolution: 0.1 µm
  •  Multi-Sensor Compatible: No
  •  Base: Granite
  •  Control System / Software: M3
  •  Display: 21″ Touchscreen PC
  •  Zoom Optics – Standard: 6.5:1
  •  Zoom Optics – Optional: 12.0:1
  •  Digital Video Camera: 1 MP Color
  •  Surface Ring Illumination: LED
  •  Transmitted Illumination: LED
  •  Telecentric Lenses (Required on FOV & HDV): .3X, .5X, .8X, 1.0X, 2.0X, 4.0X
  •  Workstation Base, Extension and Swing Arm: Optional
  •  Part Fixturing: Optional
  •  Video Pixel Calibration Standard: Optional
  •  Calibration Standards: Optional
