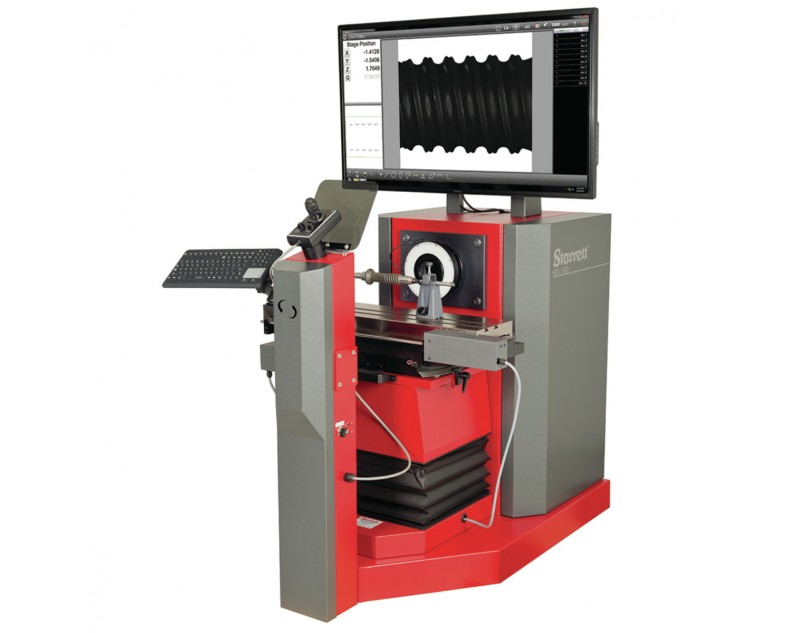

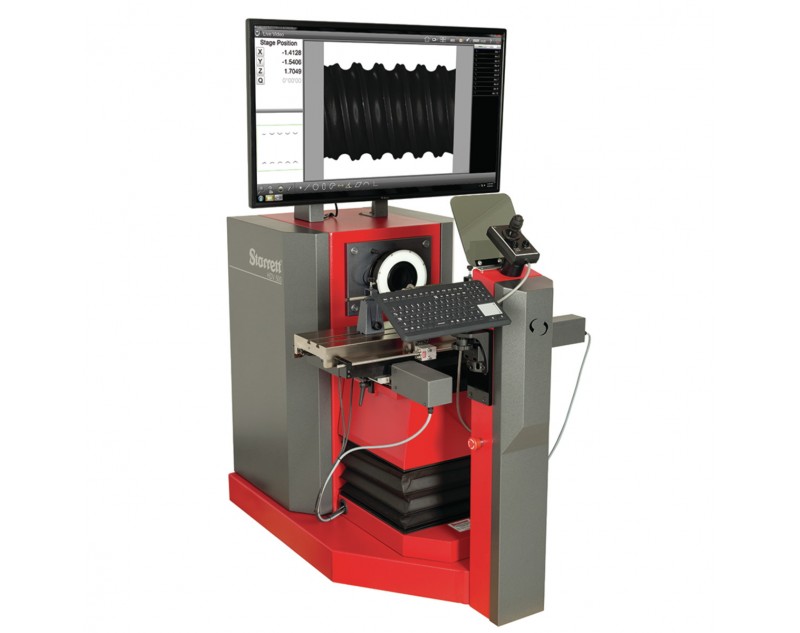

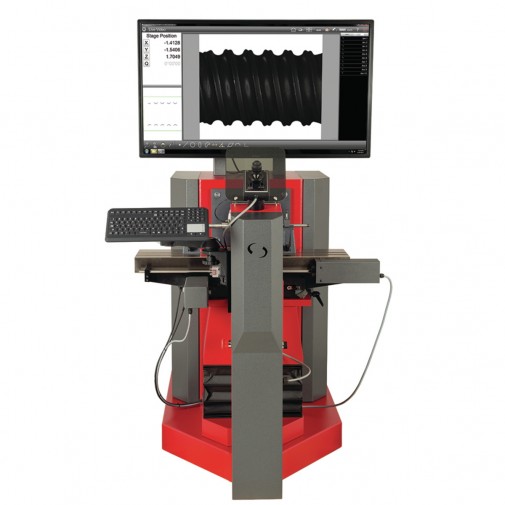

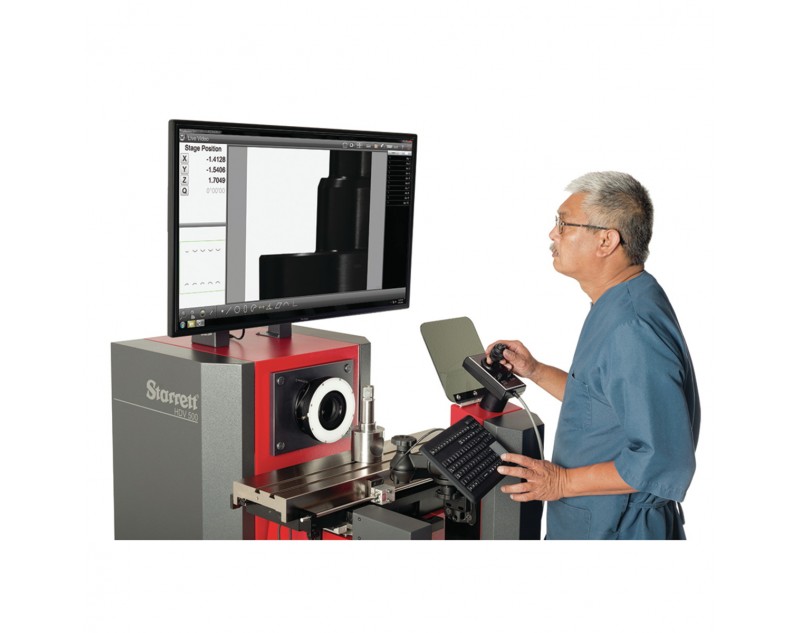

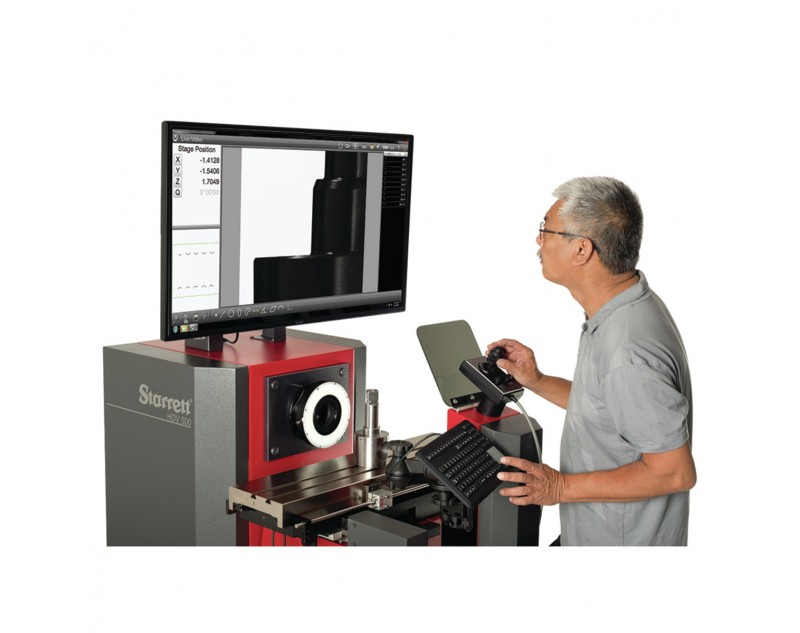

HDV500 Horizontal Digital Video System
Product Code: Starrett0023
Availability: In Stock
Availability: In Stock
$0.00
The HDV500 Digital Video Comparator offers the best features of a large horizontal optical comparator and a vision metrology system. Configured like a traditional horizontal comparator, the HDV500 has a long travel X-Y stage and heavy-duty steel construction. The work stage is the same as the popular HF600 and HF750 comparators, with a 330lb (150kg) load capacity. Much like the HDV300 and 400, the heart of the system centers on a uniquely designed interchangeable lens mounting system coupled to a hi-resolution color digital video camera (patent pending). The system is available with a choice of three telecentric lenses. The HDV systems house a powerful 64-bit PC, which runs MetLogix M3 Metrology software. With this software, DXF CAD files can be imported and 2D Go-No-Go “profile gages” can be developed directly from the CAD files. Video-Edge-Detection (VED), allows real-time interaction of the imported file with the video image of the part being inspected.
- Steel construction with nickel plated stage tooling plate
- 21.3" x 5.1" (540 x 130mm) workstage top plate
- 330lb (150kg) maximum load capacity
- 3" (75mm) of focus travel
- Helix angle adjustment with +-15° Vernier scale
- X-Y and focus positioning via joystick and trackball positioning
- Heidenhain glass scales for 0.5µm (.00002") X and Y resolution
- LED illumination for surface and profile lighting
- 5 mega-pixel black and white camera (2448 x 2058 pixels)
- Ultra-low distortion to 0.002% for telecentric FOV measurements
- 64-bit Intel® Processor
- Windows® 7 Professional operating system
- MetLogix™ M3 software with DXF/FOV option pack
- Software and measurement image (part) displayed on 42"(1070cm) touch-screen color monitor (1920 x 1080 pixels)
- System Type: Floor Standing
- Part View Orientation: Horizontal
- X-Y-Z Travel (in): 20" x 8"
- X-Y-Z Travel (mm): 500 x 200
- X-Y Accuracy (µm): E1 = 3.0 µm + L/33
- Scale Resolution: 0.5 µm
- Base: Steel
- Control System / Software: M3
- Display: 42" Touchscreen Monitor
- Zoom Optics - Optional: 6.5:1
- Digital Video Camera: 5 MP Color
- Surface Ring Illumination: LED
- Transmitted Illumination: LED
- Telecentric Lenses (Required on FOV & HDV): .11x, .16x, .24x
- Part Fixturing: Optional
- Video Pixel Calibration Standard: Optional
- Calibration Standards: Optional
