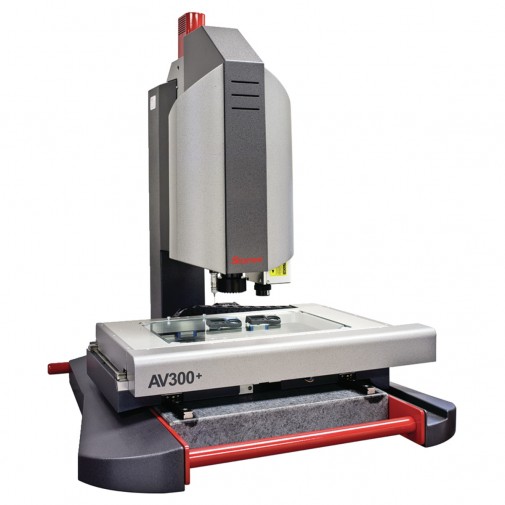

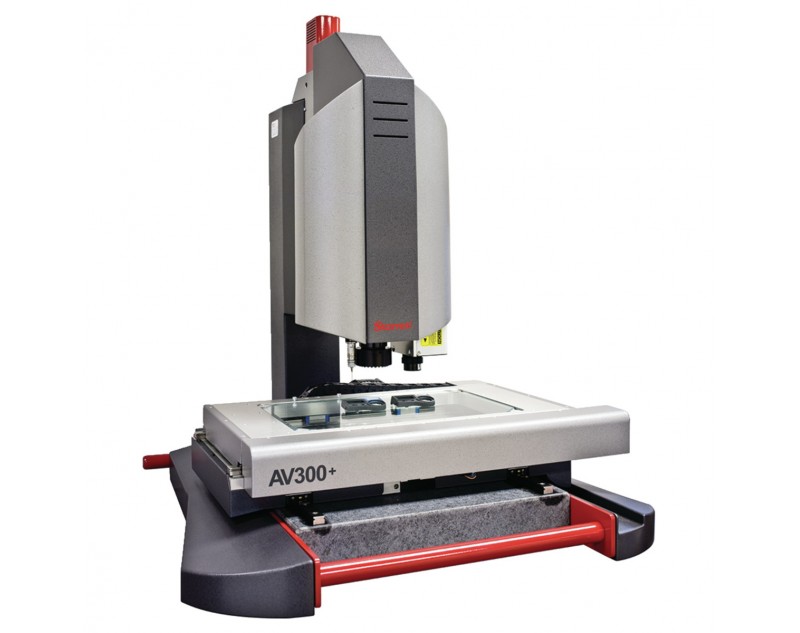

AV300+ CNC Multi-Sensor Vision System
Product Code: Starrett0015
Availability: In Stock
Availability: In Stock
$0.00

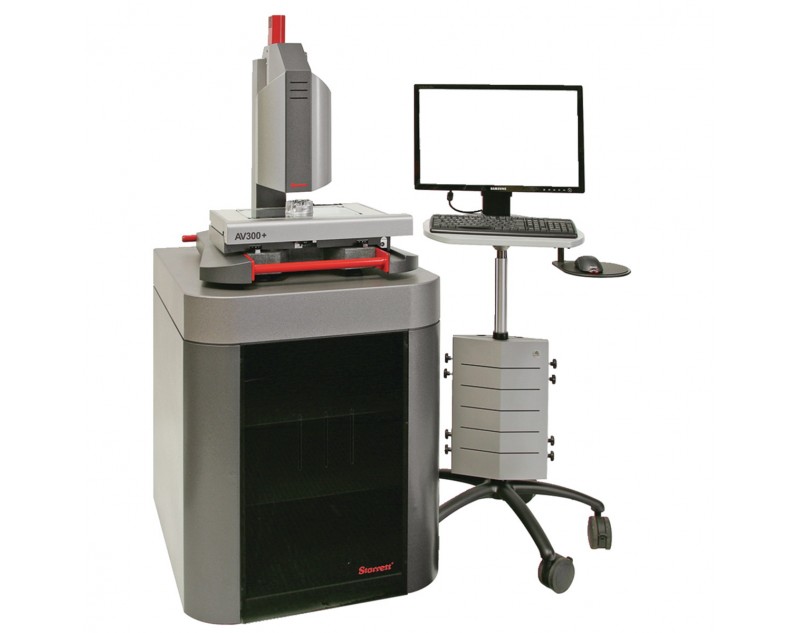

The AV300+ CNC multi-sensor vision based system offers a granite base, 12" x 6" x 8" travel, Z-axis measuring, powerful Quadra-Check software control system, 12:1 zoom optics, several LED or fiber optic illumination options, standard machine pedestal with computer cart and the capability to add optional touch and laser probes. These systems are multi-purpose CNC measurement systems, ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities. A precision mechanical bearing X-Y-Z stage and column translates video, touch probe and laser data accurately and repeatably to the Quadra-Chek software. This versatile floor standing system is precise and powerful!
- System Type: Floor Standing
- Part View Orientation: Vertical
- X-Y-Z Travel (in): 12" x 6" x 8"
- X-Y-Z Travel (mm): 300 x 150 x 200
- Z Axis Measuring: Standard
- CNC: Standard
- X-Y Accuracy (µm): E2 = 1.9 µm + 5L/1000
- Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
- Scale Resolution: 0.1 µm
- Multi-Sensor Compatible: Yes
- Base: Granite
- Control System / Software: QC5300
- Display: 24" Monitor
- Zoom Optics - Standard: 12:1
- Digital Video Camera: 1 MP Color
- Surface Ring Illumination: LED or FO
- Transmitted Illumination: LED or FO
- Coaxial Illumination: LED or FO
- Darkfiled Quadrant Illumination (Optional LED only): Optional LED
- Brightfield Quadrant Illumination (Optional LED only): Optional LED
- Auxiliary Lenses (Optional): 0.5X, 1.5X, 2.0X
- Rotary Fixture: Optional
- Renishaw Touch Probe: Optional
- Renishaw Touch Probe Change Rack: Optional
- Optimet Laser: Optional
- Machine Pedestal and Point of Control Cart/Arm: Standard
- Part Fixturing: Optional
- Video Pixel Calibration Standard: Standard
- Calibration Standards: Optional
