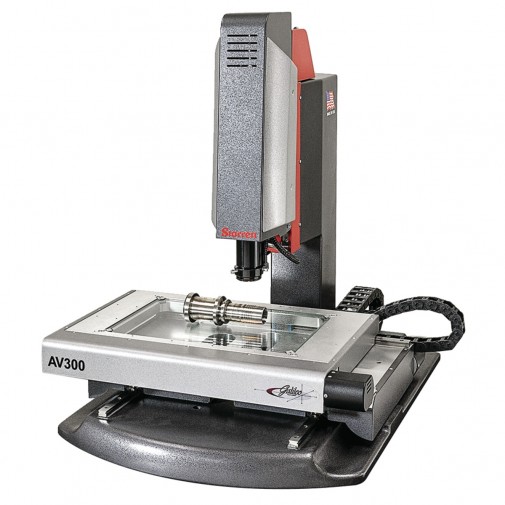

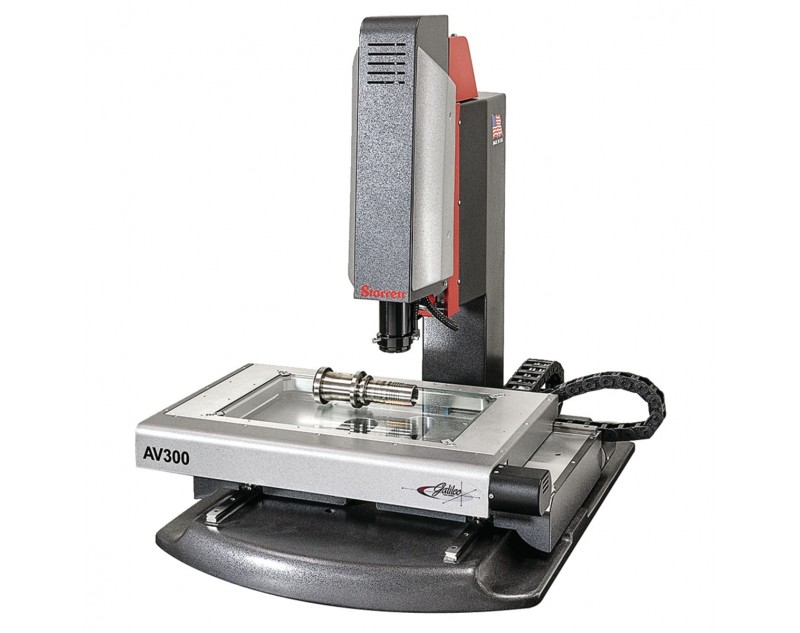

AV300 FOV CNC Field of View System
Product Code: Starrett0008
Availability: In Stock
Availability: In Stock
$0.00
The AV300 CNC field of view "FOV" vision system offers 12" x 5.5" x 5.5" travel, optional Z-axis measuring, a powerful MetLogix software control system, interchangeable telecentric optics and LED illumination. These systems are rapid video-based FOV CNC measurement systems, which reduce measurement time and are ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities. A precision mechanical bearing X-Y-Z stage and column along with interchangeable telecentric lenses gathers data accurately and repeatably for the MetLogix software. This compact bench top FOV system is simple, quick and powerful!.
- System Type: Bench Top
- Part View Orientation: Vertical
- X-Y-Z Travel (in): 12" x 5.5" x 5.5"
- X-Y-Z Travel (mm): 300 x 135 x 135
- Z Axis Measuring: Optional
- CNC: Standard
- X-Y Accuracy (µm): E2 = 1.9 µm + 5L/1000
- Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
- Scale Resolution: 0.1 µm
- Multi-Sensor Compatible: No
- Base: Cast Aluminum
- Control System / Software: M3
- Display: 21" Touchscreen PC
- Digital Video Camera: 2 MP Color
- Surface Ring Illumination: LED
- Transmitted Illumination: LED
- Telecentric Lenses (Required on FOV & HDV): .3X, .5X, .8X, 1.0X, 2.0X, 4.0X
- Workstation Base, Extension and Swing Arm: Optional
- Part Fixturing: Optional
- Video Pixel Calibration Standard: Optional
- Calibration Standards: Optional
