AV300 CNC Vision System
Product Code: Starrett0007
Availability: In Stock
Availability: In Stock
$0.00

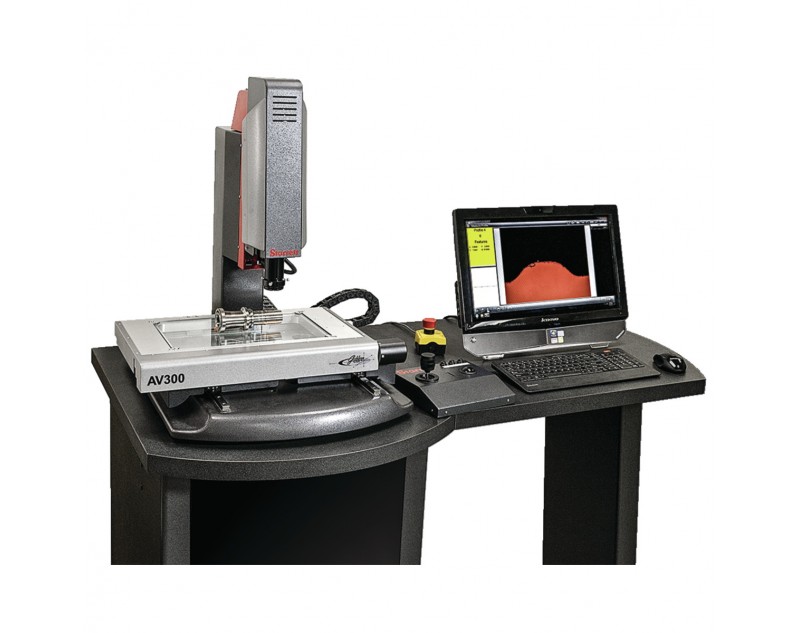

The AV300 CNC vision system offers 12" x 6" x 5.5" travel, Z-axis measuring, your choice of powerful MetLogix or Quadra-Check software control systems, 6.5:1 (optional 12:1) zoom optics and several LED or fiber optic illumination options. These systems are general-purpose CNC video-based measurement systems, ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities. A precision mechanical bearing X-Y-Z stage and column translates data accurately and repeatably to the MetLogix or Quadra-Chek software. This compact bench top system is precise and powerful!
- System Type: Bench Top
- Part View Orientation: Vertical
- X-Y-Z Travel (in): 12" x 6" x 5.5"
- X-Y-Z Travel (mm): 300 x 150 x 135
- Z Axis Measuring: Standard
- CNC: Standard
- X-Y Accuracy (µm): E2 = 1.9 µm + 5L/1000
- Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
- Scale Resolution: 0.1 µm
- Multi-Sensor Compatible: Yes
- Base: Cast Aluminum
- Control System / Software: M3 or QC5300
- Display: 21" Touchscreen PC or 24" Monitor
- Zoom Optics - Standard: 6.5:1
- Zoom Optics - Optional: 12:1
- Digital Video Camera: 1 MP Color
- Surface Ring Illumination: LED or FO
- Transmitted Illumination: LED or FO
- Coaxial Illumination: Optional LED or FO
- Darkfiled Quadrant Illumination (Optional LED only): Optional LED
- Brightfield Quadrant Illumination (Optional LED only): Optional LED
- Auxiliary Lenses (Optional): 0.5X, 1.5X, 2.0X
- Renishaw Touch Probe: Optional on QC5300 only
- Renishaw Touch Probe Change Rack: Optional on QC5300 only
- Workstation Base, Extension and Swing Arm: Optional
- Part Fixturing: Optional
- Video Pixel Calibration Standard: Optional
- Calibration Standards: Optional
